corn starch fiber sieve grading machine manufacturer corn flour sifter

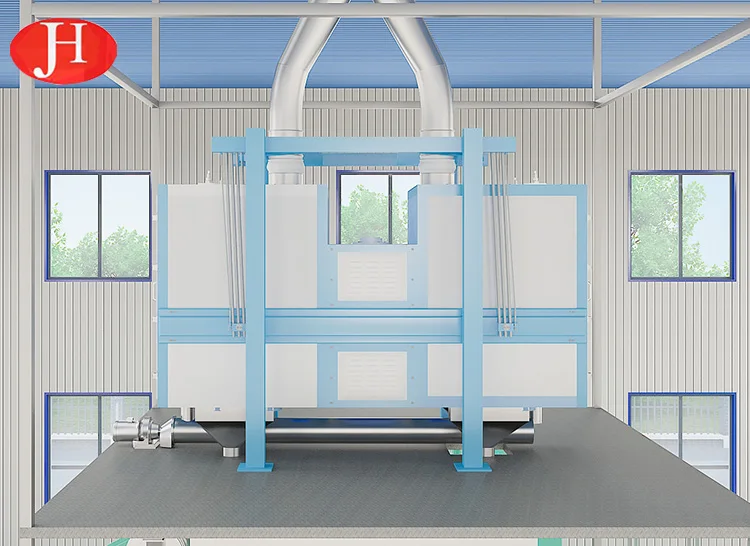

MFSC and MBSC twin sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran
particles or particles bigger that flour particles are removed.It is widely used for sieving dry starch before starch packing in corn starch, cassava
starch, potato starch and sweet potato starch and wheat starch sago starch processing project.
Main technical parameters
| Model | Bin (Piece) | Number of sieves (piece) | Capacity (t/h) | Diameter (mm) | Power (Kw) | Weight (kg) | Dimension (mm) |
| GDSF2*10*100 | 2 | 10-12 | 8-10 | Φ45-55 | 2.2 | 1200-1500 | 2530x1717x2270 |
| GDSF2*10*83 | 2 | 8-12 | 5-7 | Φ45-55 | 1.5 | 730-815 | 2120x1440x2120 |
| GDSF1*10*83 | 4.5 | 2-3 | 3-4 | Φ40 | 0.75 | 600 | 1380x1280x1910 |
| GDSF1*10*100 | 6.4 | 3-4 | 4-5 | Φ40 | 1.5 | 750 | 1620x1620x1995 |
| GDSF1*10*120 | 7.6 | 4-5 | 5-6 | Φ40 | 1.5 | 950 | 1890x1890x2400 |
Advantages of flour sifter
1. Long sieving road;Small occupying space;
2. High efficiency and large capacity;
3. Energy saving and stable operation;Easy maintenance;
4. Sifter screen is varied 40-120 mesh according to different material;
5. Sifter screen material is stainless steel;
6. Sifter frame can be made of carbon steel or stainless steel.
Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting
and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different
applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged
out each sieve side to outlets, while the course material over tails and sent to separate outlets.
